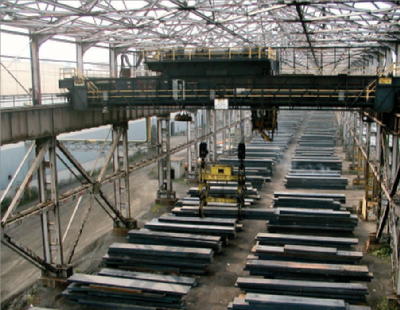

Steel Mill in USA

• Connect existing power cables.
• Connect existing motor cables.
• Connect existing brake cables.
• Connect existing operator controls.
• Fine-tune pre-set acceleration ramps, speed points and braking.

Save on Energy Costs

Motor energy consumption reduced by 66.5% plus torque boost at startup is 7 amps in the motor for every 1 amp drawn from the power source-motors work easier and last longer.

Solid-state construction, no wear components plus microprocessor control of contactors means contactors never make or break a load with Microprocessor Logic, 5-speed card & IGBT’s

• Brownouts and discontinuity of the power supply
• Substantial negative ring of supply voltages
• Positive-going transients caused by switching off

  other machines

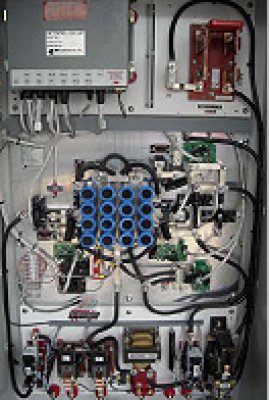

Patented Hoist Control

• True series motor hoist circuit
• True shunt motor lowering circuit
• Emergency Brake Contactor
• Upper Limit Switch Coordination
• DB Circuit IGBT Switch + Parallel Contactor

Additional Benefits

• Open architecture panel design
• All components easily accessible
• Multiple operator control choices
• Fault register for easy troubleshooting
• Hand-held data terminal for setup, changes in setup and diagnostics
• Works with Series Brakes and/or Shunt Brakes—specify when ordering
• Duplex & quadruplex available

Typical Specifications:

• Voltage: 230 VDC Nominal, 300 VDC Max, 120 VDC min
• DC Mill Motor Frame: 602, 802 through 622,822
• Ambient Operating Temperature: +50°C Maximum to -10°C Minimum
• High ambient drives available: +60°C Maximum to -10°C Minimum
• Diagnostics & Parameter Adjustment: Data Terminal, Part No. A62499
• DB Resistor: required but not included, reuse existing units in good condition
